In-line Viscosity Meter

FUV-1 Model-104 ／FUV-1 Model-204 (Explosion proof model) FUV-1 is able to measure liquid viscosity accurately with its unique vibration principle.  This product features many functions for in-line viscosity measurement.  Besides, an explosion proof model is available. [Brochure] FUV-1 Model-104/204 (528KB)

System Configuration

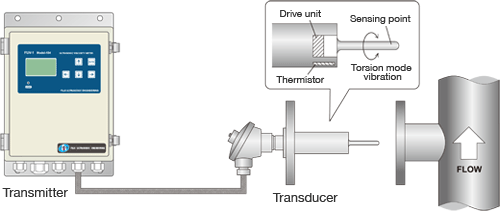

FUV-1 Model-104 (Example)
10m cable (standard option)
The repeater is required for the explosionproof model (FUV-1　 Model-204) or the requirement for over 30m distance.

Advantages  ● Ultrasonic torsion mode vibration  ? Real time measurement with tight accuracy  ● No moving part design  ? No need for periodical parts replacement & calibration  ● Simple sensor design  ? Easy cleaning  ● Easy installation  ? No position limitation & calibration at installation  ● Useful functions  ? Easy system integration for process control in real time

Applications Starch glue for cardboard Food paste / source Polymer / chemicals compound Ink / coating material

Principle Please jump to 　　Technical Info

Specifications

Name		FUV-1 Model-104/Model-204(Explosion Proof Model)
Principle		Ultrasonic torsion mode vibration
Display		LCD (viscosity, temperature, various parameters)
Temp. of liquid		0 - 100 degree C
Environments		Transmitter : 0 – 50 degree C RH85% or less (No dew condition) Transducer : 0 – 100 degree C
Output		Analog : DC4 - 20mA (adjustable by viscosity) Digital : RS232C Alarm terminals
Power		AC100 - 240V 50-60Hz 30VA
Measurement range	Low vis.	0 - 100mPa?s
	Middle vis.	0 - 1000mPa?s
	High vis.	0 - 10000mPa?s
Accuracy		+/-2%F.S.
Function		Average setting, Gain setting
Cable		10m (standard) Max. 300m (the repeater required)
Explosion proof spec.	Transmitter	ExⅡ BT4
	Transducer	ExⅡ CT4
