Ternary Model (Flange type)


多成分濃度計(jì)(汎用)

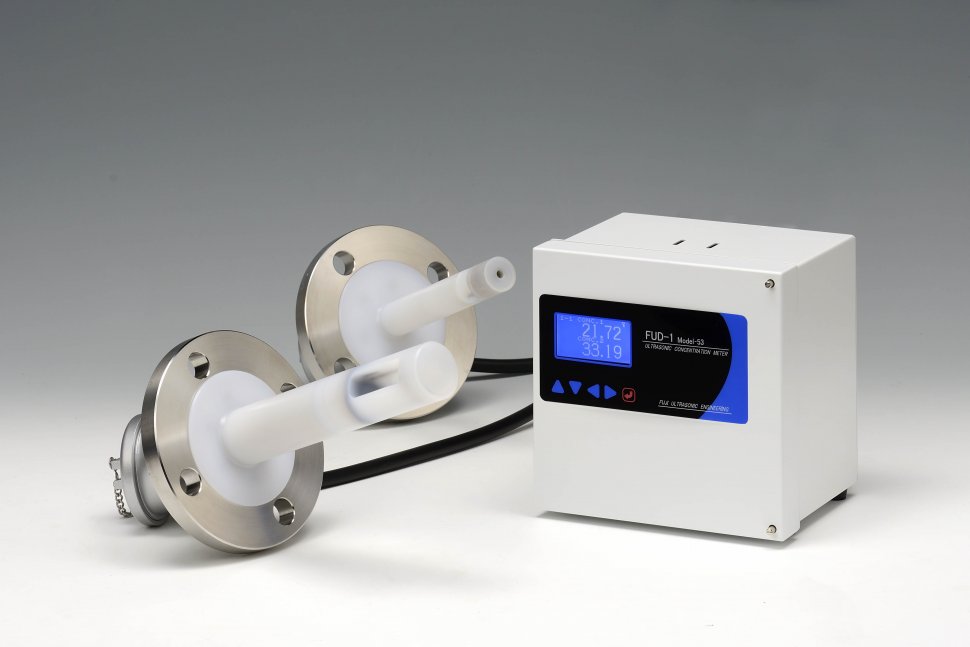

FUD-1 Model-53/FUD-1 Model-63(Explosion proof model)

 The ternary model is available for two solutes in solution (two components in solvent) with combination technology of ultrasonic propagation velocity & conductivity.


PDF
[Brochure] FUD-1 Model-53/63(1.5MB) お問い合わせ

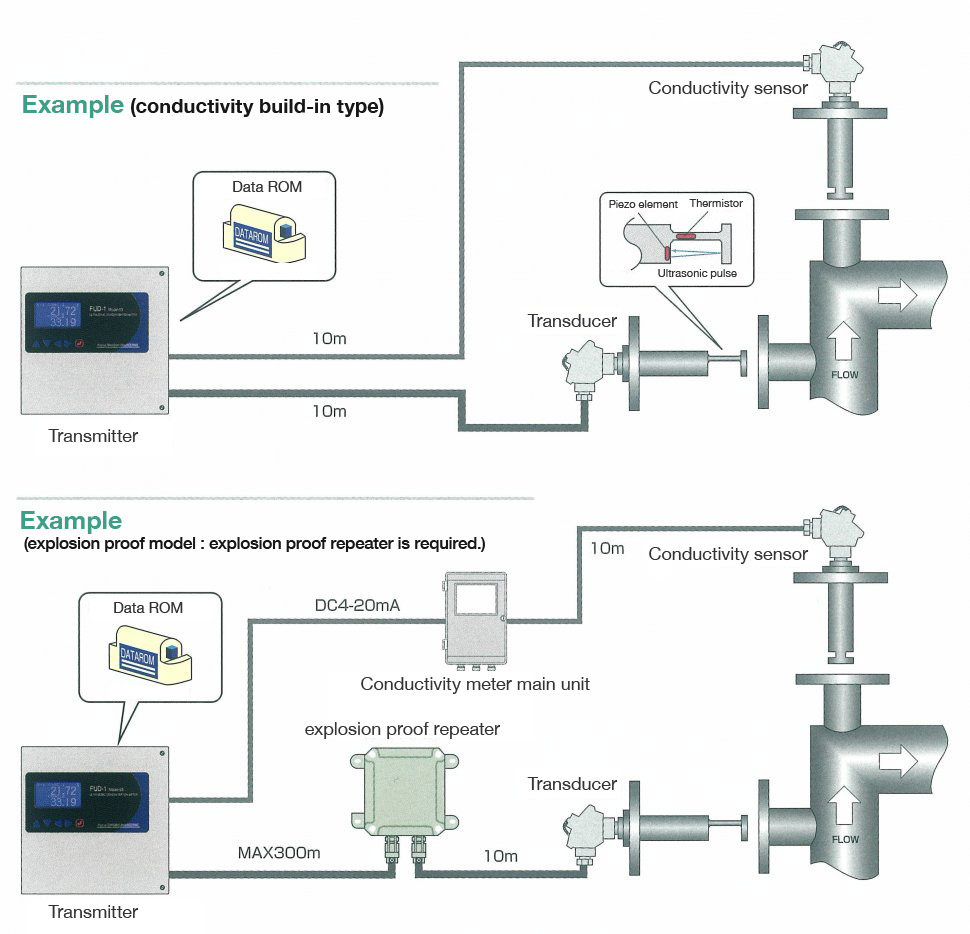

System Configuration

多成分濃度計(jì)(汎用)


Advantages

 ● Combined technology of velocity & conductivity ? Real time measurement with tight accuracy
 ● No moving part design
 ? No need for periodical parts replacement & calibration
 ● Easy installation ? No calibration at installation
 ● Useful functions ? Easy system integration for process control in real time

Applications

  • Etchant + dissolved material
  • Cleaner + dissolved material
  • Mixing two chemicals



Specifications

Name FUD-1 Model-53/FUD-1 Model-63 (Explosion Proof Type)
Measurement parametersUltrasonic velocity, conductivity and temperature
Display LCD (concentration 1 & 2, temperature, velocity, conductivity/various parameters)
Outputs Analog / DC4 - 20mA 2 lines (adjustable for conc. value)
Digital / RS232C (concentration 1 & 2, temperature, velocity, conductivity, error code)
Alarm / high, low, error 2 lines
Power AC100 - 240V 50/60Hz, 30VA
Transmitter Panel mount type (DIN Standard)
Environment Temp.0 - 50 degree C, RH less than 85% (No dew condensation)
Temp. of liquid 0 - 100 degree C, -10 - 160 degree C (100 degree C span) [Option]
Function Output setting, Alarm-output setting, Average times setting,
Offset and Gain setting, Self-diagnosis-check,
Fail Safe Mode, Auto Error Canceller Mode
Option RS485 Output (Alternative choice with RS232C.)
Temp. Output (DC4 - 20mA)
Channel max. 7ch.
Cable 10m (normal), Max. 300m (A Repeater is required for more than 10m.)
Explosion Proof Type Repeater Ex 2 BT4
Transducer Ex 2 CT4
Meterials of Transducer SUS316(L), SUS304(L), Teflon coated, Hasteroy, Titanium, Nickel, Tantalium, PFA, PTFE, PVC, PVDF, etc.
